FDY-30

HYD. 2-Roll-Type Thread Rolling Machine

FEATURES:

Therolling dies post & pitch of the m/c can be moved & adjusted quickly, convenient for rolling the threading with any length.

Designed for square slide way and processed by precision ground, which is very suitable for large workpiece make threading processing, stable, ductile & robust.

The machine is suitable for machinery, hardware, auto & motor- cycle, construction hardware and other thread rolling processing etc.,

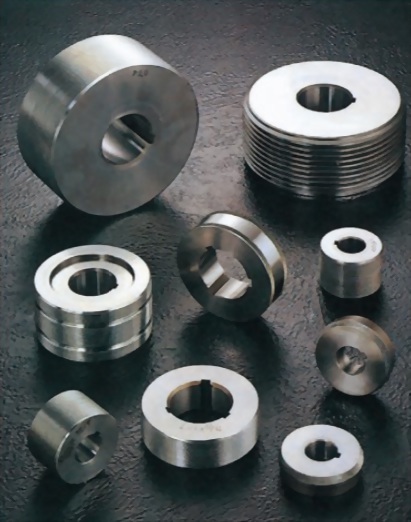

Comprehensive Rolling Dies:


SPECIFICATIONS:

 Model

FDY-30

 Rolling dia.

4~32mm

 Pitch

0.7 ~ 4.0 P

 Rolling length

30mm~任何長度Any length

 Mainspindle motor

5 HP

 Hyd. pump motor

5 HP

 Coolant pump motor

1/8 HP

 RollinQ spindle dia.

54mm

 Rolling dies dia.

150mm

 Rolling dies thickness

35/70mm(max.)

 Distance between spindle centers

120~175mm

 Rev. speed of rolling dies

13/21/30/40 rpm

 Processing capacity

7~20 pcs/min

 Hyd. feeding pressure

18 Tons

 Ht.from table surface to center of rolling dies

160mm

 N.W. /G.W.

1200kg/1350kg

 Machinesize

(1150+550)x1200mmx1500mm

 Measurement

1880x1380x1750mm


※Machine made available on customer's request.

※The specification & dimension are subjected to change without prior notice
