• FDY-75

FDY-75

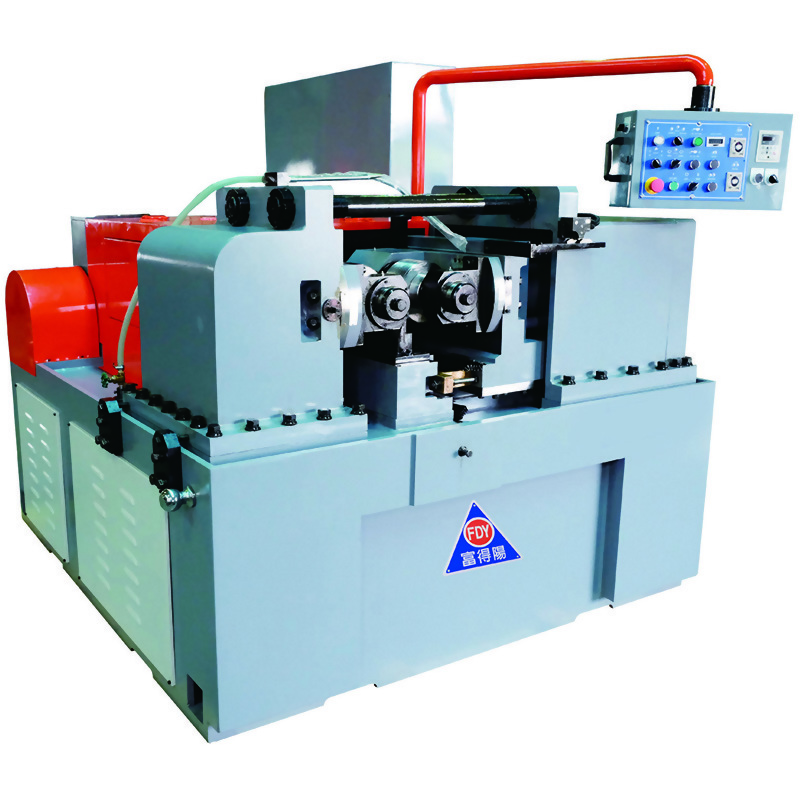

HYD. 2-Roll-Type Thread Rolling Machine

SPECIFICATIONS:

 Model

FDY-75

 Rolling dia.

6~80mm

 Pitch

1.0~6.0P

 Rolling length

20mm~ 任何長度Any length

 Mainspindle motor

20 HP

 Hyd. pump motor

10 HP

 Coolant pump motor

1/2 HP

 Rolling spindle dia.

80mm

 Rolling dies dia.

220mm

 Rolling dies thickness

230(max)mm

 Distance between spindle centers

230~400mm

 Rev. speed of rolling dies

32/59/82/115 rpm

 Processing capacity

2~20 pcs/min

 Hyd. feeding pressure

50 Tons

 Ht. from table surface to center of rolling dies

325mm

 N.W. /G.W.

5,750kg /5,890kg

 Machine size

2180x2050x2050mm

 Measurement

2380x2200x2250mm

※The specification & dimension are subjected to change without prior notice.

※Machine made available on customer's request.
